Oroshine-HF100R

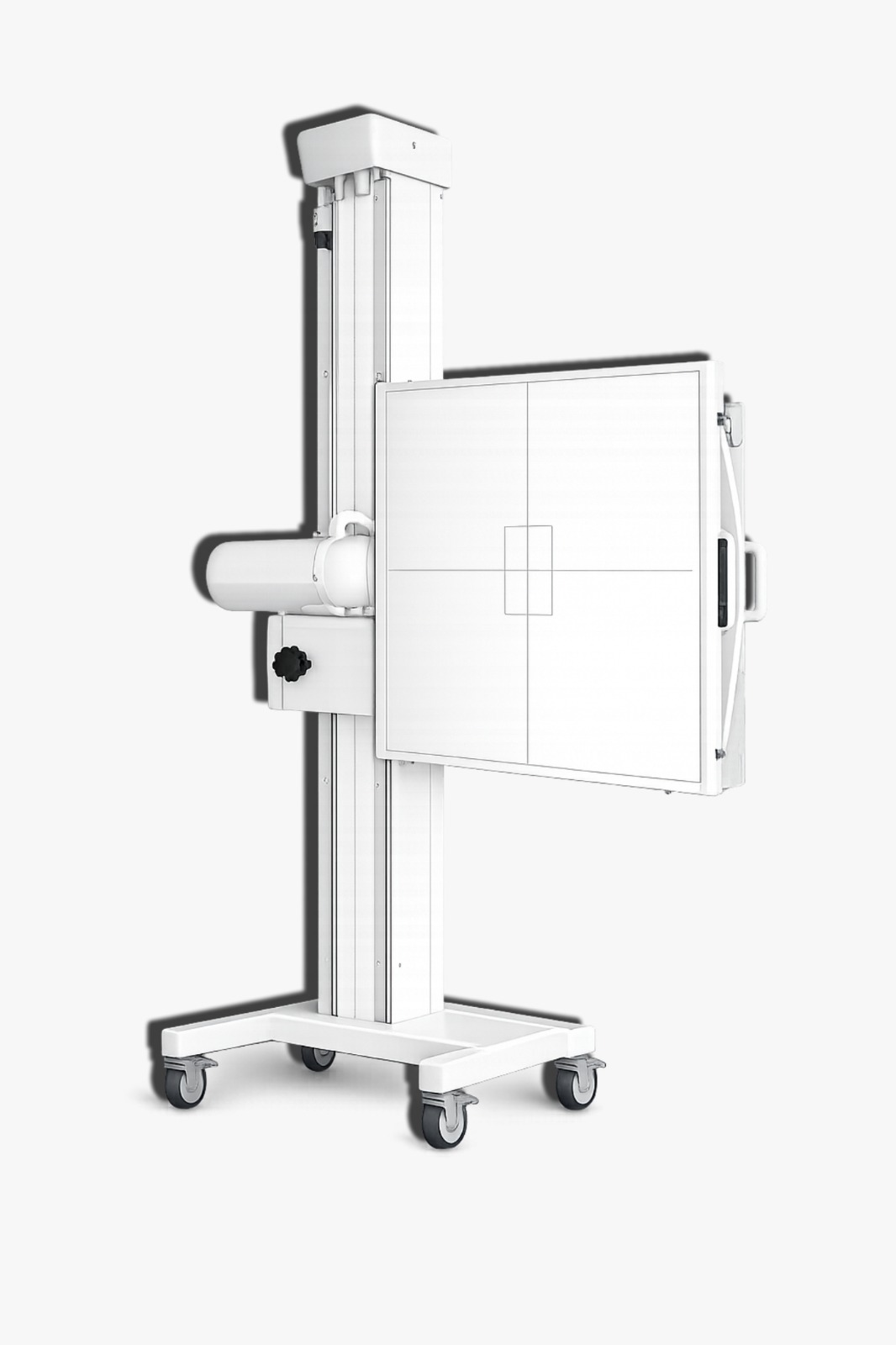

The Oroshine-HF100R is a specialized fixed diagnostic package featuring an integrated vertical Bucky stand, optimized specifically for chest, spinal, and skeletal examinations
.jpeg)
.jpeg)
Technical Specifications
Model Name: OROSHINE-HFIOOR
Application / Usage: General Radiography
X-Ray Generator Type: High Frequency
X-Ray Generator Power: 5.6 KW
X-Ray Beam Energy (kV Range): 45-125 kVp (15 steps)
X-Ray Tube Current (mA Range): 5-100 mA
Exposure Time Range: 0.01 ms-10000 ms
Focal Spot Size (Large/Small): 1.8 mm / 0.6 mm
Tube Heat Storage Capacity: 30 KJ
Anode Type: Stationary
SID: 100 cm
Total Filtration: 2.8 mm Al Equivalent
Power Requirements: 230 VAC 50 Hz, Single Phase
Key Features & Benefits
Dedicated vertical Bucky stand configuration for seamless chest and spine alignment
High-frequency generator ensuring reduced exposure times and crisp contrast
Fine focal spot options yielding high spatial resolution for micro-structures
Smooth counterbalanced vertical movement for effortless height adjustment
Compact single-phase operational requirement lowering infrastructure costs
